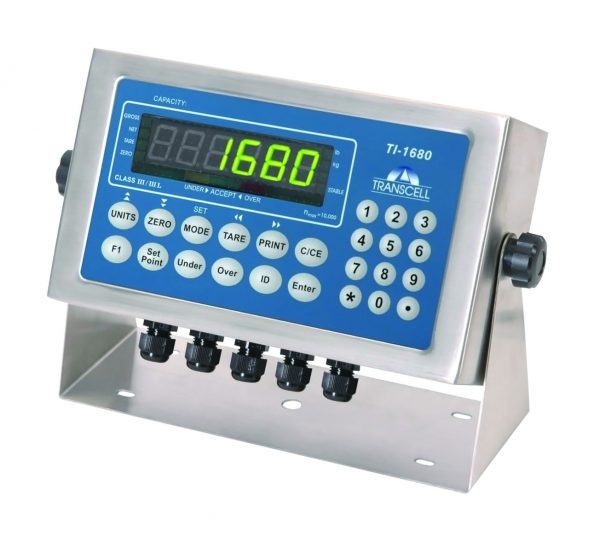

TI-1680 Series

Features:

The TI-1680 is an NTEP and Canadian certified digital indicator housed in a stainless steel enclosure. This indicator is designed to support many applications for the installer, yet maintain simplicity for the operator. Configure the‘F1’ Key for Peak, Totalizing (Accumulation), Hold, and Live Weight or disable the ‘F1’ key to simplify operation. Dedicated keys are provided for checkweighing and batch weighing. The large LED display is easy to read. Stainless steel construction means it’s washdown safe. Standard communications included two RS-232 ports, one of which is configurable to USB. Analog output is available.

Technical Data:

•NTEP & Canadian certified for 10,000 divisions •Display Resolution: up to 50,000 external divisions

•Serial Port: two full duplex RS-232C serial ports (one port can be configured to USB)

•Bracket: heavy duty stainless steel swivel bracket

•Display: large, easy to read LED

•Gross/Net/Tare- Print Ticket Mode with 6 digit ID number

•Tare and APW- Stored in Non-Volatile Memory Load

•drives up to 12 x 350 ohm load cells Internal power supply

•Units: lb & kg

•Special Applications: Piece Counting Remote Display, PeakHold, checkweighing, batching, accumulation, self-diagnostics, vehicle weigh-in/weigh-out

•Keyboard Tare and ID Entry

•256 Truck ID number Storage

•One Logic Level Input- for Remote control

•Four cutoff outputs- for batch weighing
